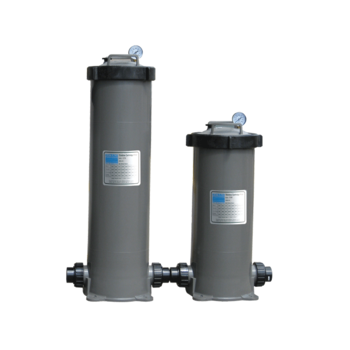

Trimline Cartridge Filters

Trimline Cartridge Filters are compact, economical filters designed to effectively filter out suspended solids from your pool.

Sign Up for Waterco Newsletter

  • Trimline cartridge filters are compact, economical filters designed to effectively filter out suspended solids from your pool. Trimline cartridge filters utilise a specially treated synthetic fabric which is pleated into a cartridge. Cartridge filters are ideal for applications where backwashing may not be practical.

  • Rugged Construction

    Constructed from high impact polypropylene and designed for easy maintenance, Trimline cartridge filters will give years of trouble free service.

  • Trimline Pleated Filter Cartridge

    The Trimline pleated filter cartridges are fabricated from pleated reusable polyester fabric. The media has been pleated to provide 4.6 to 9.3 square metres of surface area in order to maximise the cartridge dirt holding capacity and extend the time between cleaning.

  •

    Material:  Polyester Fabric material, Vinyl Plastisol end caps and a Polypropylene core.

    Operating Temperature: 4o C to 50o C

    Maximum Pressure Drop: 20 kPa


    Simple Maintenance: The filter cartridge is easily cleaned
    by hosing the pleats with a standard
    garden hose.

    Warranty: Waterco is proud to show its absolute confidence in its range of Trimline cartridge filters by offering a 10 (5+5) tank warranty and 1 year warranty on all other components.
    Commercial applications attract a 1 year tank warranty.

Trimline Cartridge (Elements) Filters utilise a specially treated synthetic fabric which is pleated into a cartridge. Cartridge filters are ideal for applications where backwashing may not be practical.

Constructed from high impact polypropylene and designed for easy maintenance, Trimline Cartridge Filters will give years of trouble-free service.

The Trimline pleated filter cartridges are fabricated from pleated reusable polyester fabric. The media has been pleated to provide 4.6m2 to 9.3m 2 of surface area to maximise the cartridge (element) dirt holding capacity and extend the time between cleaning.

Material: Polyester Fabric material, Vinyl Plastisol end caps and a Polypropylene core.

Operating Temperature: 40O to 50OC

Maximum Pressure Drop: 20 kPa

  • Simple maintenance
  • One-piece mould construction
  • 10-year warranty (5 full + 5 pro-rata) tank warranty & 1 year on all other components)
